This tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases.  It is up to the installer to drill and locate the mounting holes.  Mounting hardware not included.

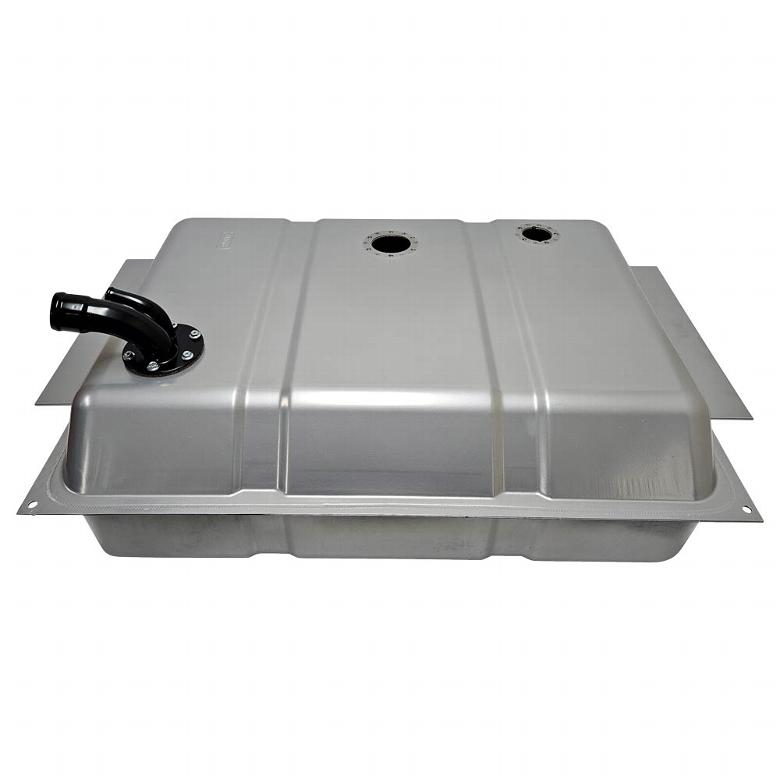

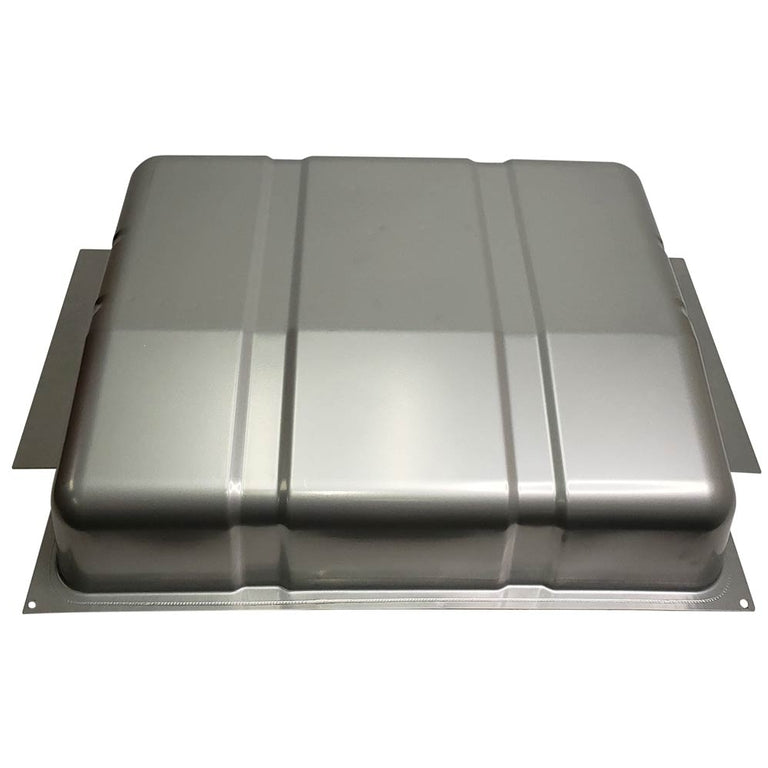

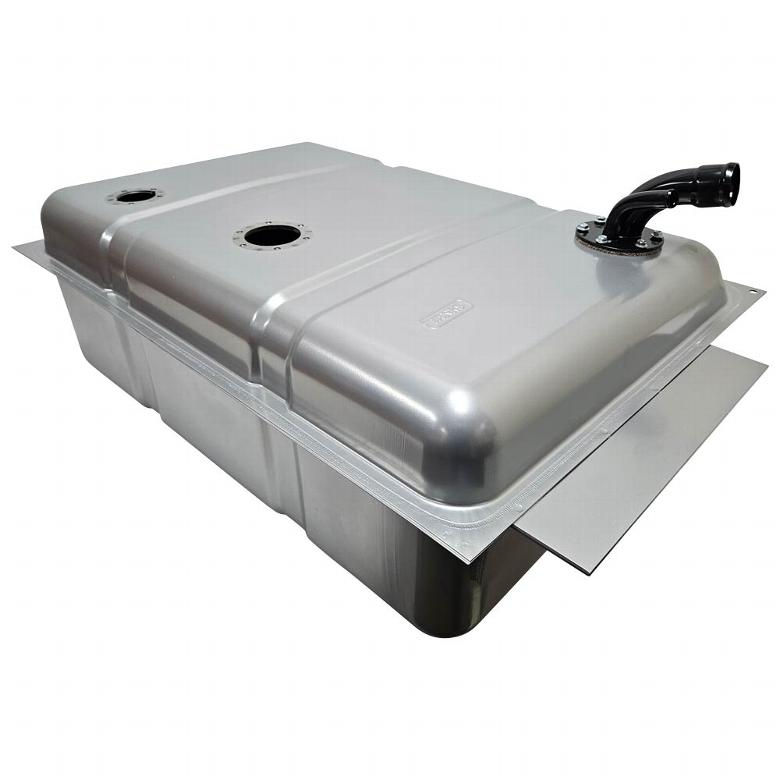

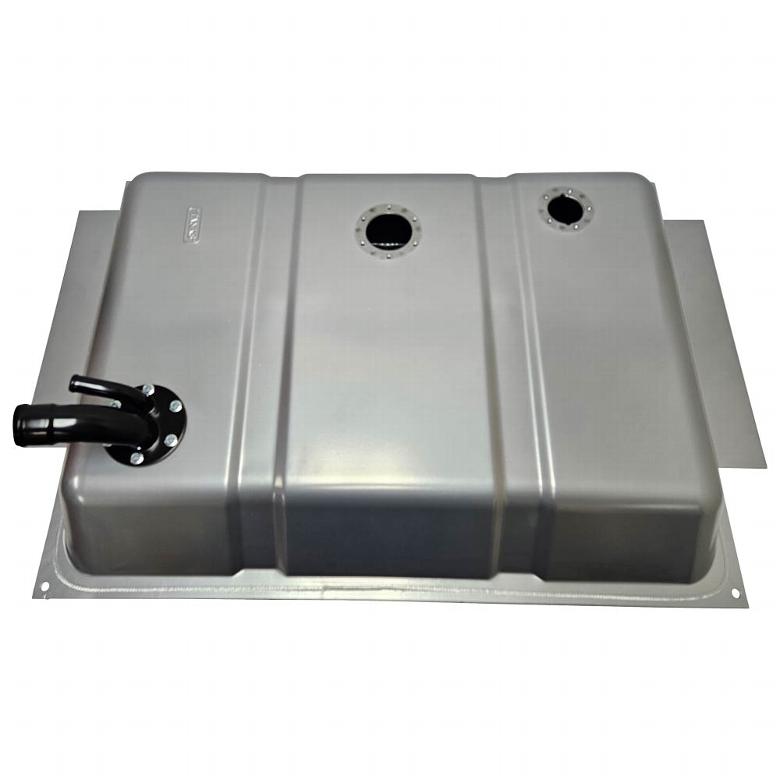

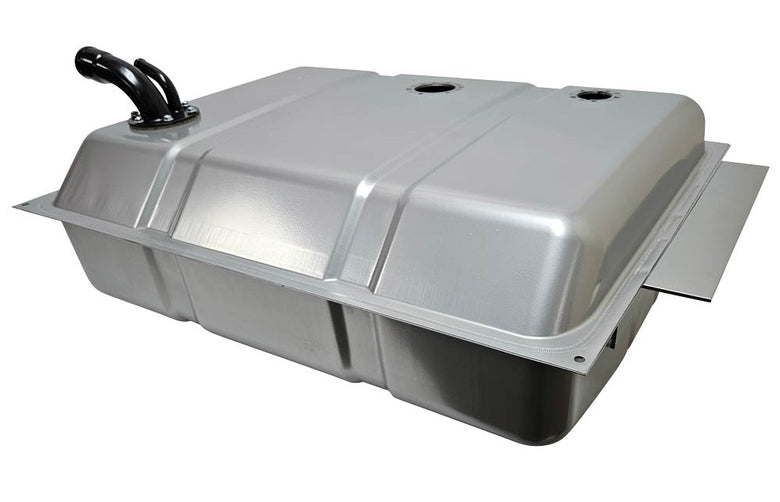

• 1969-72 Chevy Blazer and GMC Jimmy Frame Mount Fuel Tank
• 1-1/2" Side Fill Filler Neck
• Die Stamped Galvanized Steel then Powder Coated Silver
• Fuel Injection Ready!
• Utilizes our GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
• Uses aftermarket 5-bolt senders.  Multiple Ohm ranges available to work with factory (0-90 ohm) or aftermarket gauges.  If using tube sender or reed sender, length is 9".
• EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
• If using on a carbureted application use part# PTA-G
• 18 Gallon Capacity
• Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange)
• Size is 28" x 20-1/2" x 9-3/4"  (measured without the mounting flange)

This product is not legal for sale or use on emission-controlled vehicles except when it replaces an existing part that matches the original equipment manufacturer (OEM) specifications in design and function. It cannot be used if it alters or modifies the vehicle’s emission control system.
