C10 Suspension Upgrade Guide (1967-1972): Stock vs Aftermarket.  Where do I start?

By: Ian Martin

If you've driven a stock 1967-1972 C10, you already know the feeling — vague steering, a rear end that hops over bumps, and body roll that reminds you this truck was engineered to haul grain, not carve corners. The good news is the 1967-1972 C10 has the strongest aftermarket support base of any classic GM truck, and upgrading your suspension doesn't have to mean a full frame-off resto-mod. Whether you're keeping it stock height or going full coilover, this guide covers everything you need to know.

Understanding Stock 1967-1972 C10 Suspension

The 1967-1972 C10 uses an independent front suspension (IFS) with upper and lower A-arms and coil springs. Out back, most trucks came with a two trailing arm and coil spring rear suspension — one trailing arm per side locating the rear axle with coil springs handling the load. Leaf springs were available as an option on some configurations but the two-bar coil setup was standard on the vast majority of C10s that left the factory. After 50+ years, the common failure points are predictable: dried-out rubber bushings throughout the trailing arms and control arms, sagging coil springs, worn ball joints, and sloppy steering box play. Most 1967-1972 C10s on the road today need at minimum a full bushing refresh before any performance upgrades make sense.

Signs Your 1967-1972 C10 Suspension Needs Attention

Before spending money on upgrades, make sure you're not masking worn components. Watch for:

Excessive body roll in corners — often worn sway bar bushings or end links

Wandering or vague steering — worn tie rod ends, ball joints, or steering box

Uneven tire wear — misalignment caused by worn control arm bushings

Bottoming out over moderate bumps — collapsed or sagging coil springs

Rear axle hop under acceleration — classic symptom of worn trailing arm bushings and sagging coil springs

A full inspection of ball joints, bushings, shocks, and springs should be your starting point before any upgrade path.

Suspension Upgrade Options by Budget

Budget Build ($500–$1,500)

A full restoration of the stock suspension geometry using quality replacement parts — new coil springs front and rear, gas-charged shocks, and polyurethane bushings throughout including the trailing arms. This eliminates the slop and sag of 50-year-old rubber and transforms how the truck drives without changing ride height or requiring alignment changes beyond a standard setup. Best for: daily drivers, trucks staying stock height, builds on a timeline.

Mid-Range Build ($1,500–$4,000)

Drop spindles, lowering springs, and tubular control arms up front paired with lowering coils and polyurethane trailing arm bushings out back give you a significantly improved stance and handling without committing to a full suspension swap. Tubular control arms are stronger than stock stamped steel and allow for improved alignment geometry — particularly caster — that the stock setup can't achieve. Pair with a front sway bar upgrade and quality monotube shocks for a street truck that actually handles. Best for: mild street trucks, show trucks that still get driven, builders who want improved handling without full frame modifications.

Full Resto-Mod ($4,000+)

A coilover conversion up front combined with a coilover rear setup transforms the 1967-1972 C10 into a modern-driving machine while keeping the classic body. This level of build typically involves subframe connectors, a steering rack conversion, and big brake upgrades to match the handling capability. Best for: performance builds, show trucks, drivers who want a modern driving experience in a classic body.

Front Suspension Upgrades for 1967-1972 C10

The 1967-1972 front end is the most well-supported in the classic GM truck aftermarket. Key upgrades in order of impact:

Polyurethane bushings — replace every rubber bushing in the control arms, sway bar, and steering components. This alone eliminates most of the vagueness in a high-mileage front end and should be the first step on any build.

Ball joints — stock replacements are fine for a stock-height build. For lowered trucks, look for ball joints rated for the increased angle at your target ride height.

Drop spindles — the cleanest way to lower the front 2-3 inches without changing suspension geometry or stressing ball joints. Maintains stock control arm travel and pairs well with stock or mildly upgraded springs.

Tubular control arms — stronger than stock stamped steel, allow for improved caster settings (typically 4-6 degrees for highway stability), and are required for most coilover conversion kits on 1967-1972 trucks.

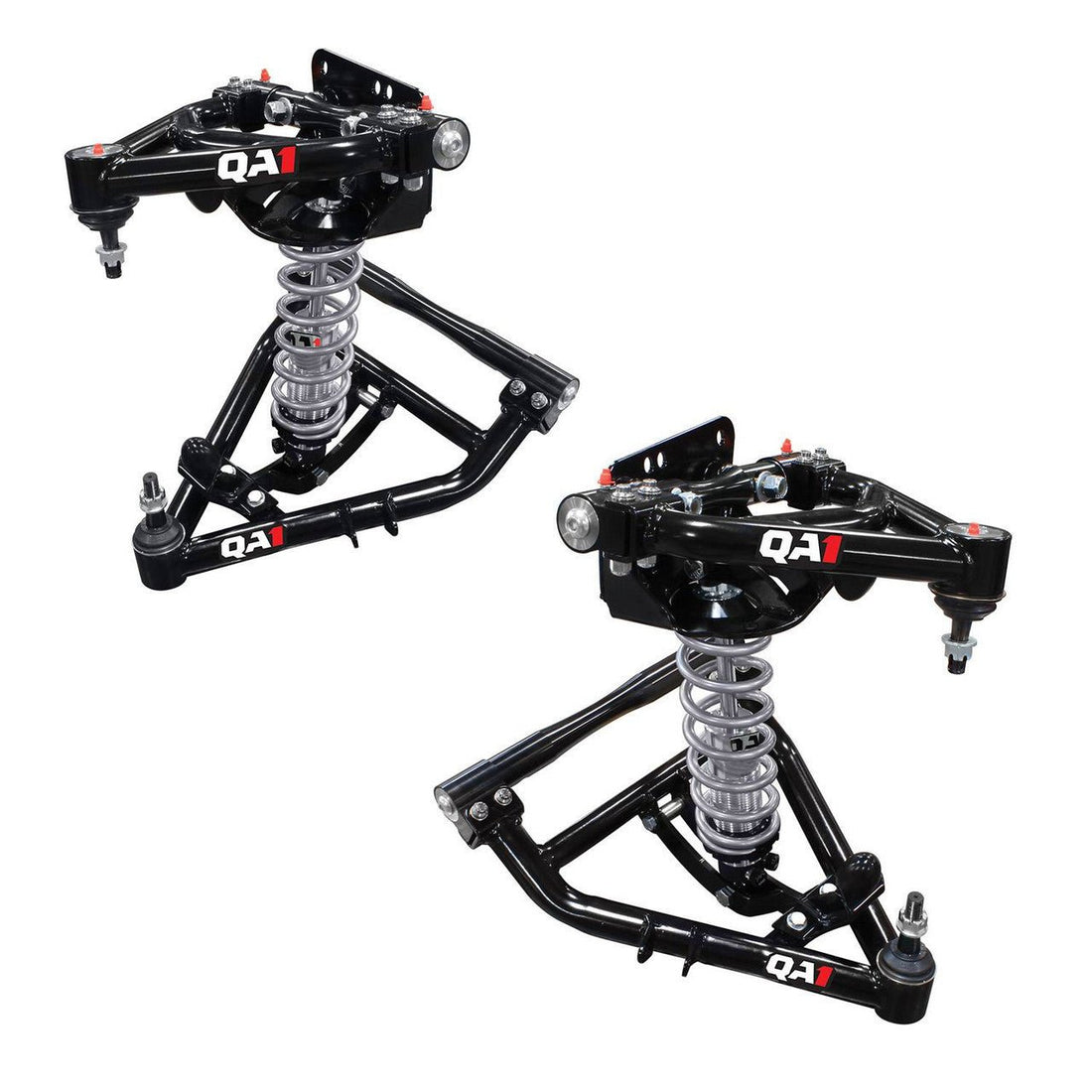

Coilover conversion — replaces the stock coil spring and shock with a single coilover unit. Allows for ride height adjustment and significantly improved damping. Requires tubular control arms on most 1967-1972 applications.

Power steering conversion — if your C10 is still manual steering, a power steering box swap is one of the highest quality-of-life upgrades you can make, especially on a lowered truck with wider tires.

Rear Suspension Upgrades for 1967-1972 C10

The standard 1967-1972 C10 rear suspension uses two trailing arms — one per side — with coil springs. After decades of use, the common issues are worn trailing arm bushings, sagging coil springs, and deteriorated rubber that allows excessive axle movement under acceleration.

Coil spring replacement — the starting point for any rear suspension refresh. Stock-height replacements restore proper ride quality and eliminate the sag common on 50-year-old springs. Lowering coils in 1-3 inch drops are available specifically for 1967-1972 C10 applications.

Trailing arm bushings — polyurethane replacements eliminate the slop and axle wrap that worn rubber allows. One of the highest impact, lowest cost upgrades on the rear end — do this before anything else.

Shock absorbers — monotube gas-charged shocks are a direct upgrade over stock twin-tube units and pair well with fresh coil springs for a noticeably improved ride.

Traction bars — help control axle wrap under hard acceleration, especially on higher horsepower builds where the stock trailing arm geometry gets overwhelmed.

Coilover rear conversion — replaces the stock trailing arm and coil setup with full coilovers for ride height adjustability and significantly improved damping. Bolt-in kits designed specifically for 1967-1972 C10 trucks are available on most applications without cutting or welding.

Frequently Asked Questions

What suspension fits a 1967-1972 C10?

The 1967-1972 C10 uses an independent front suspension with upper and lower A-arms and coil springs, and a two trailing arm and coil spring rear setup. It's compatible with the widest range of aftermarket suspension components of any classic GM truck generation, including drop spindles, tubular control arms, coilover conversion kits, and replacement coil springs.

Can I lower my 1967-1972 C10 without a full suspension swap?

Yes. Drop spindles are the cleanest way to lower the front 2-3 inches while maintaining stock geometry. Lowering coil springs handle the rear. This combination gives you a lowered stance without modifying control arms or requiring major alignment changes.

What shocks fit a 1967-1972 GMC C10 truck?

The 1967-1972 GMC and Chevy C10 share the same front and rear shock mounting. Standard replacement shocks are widely available. For performance applications, monotube gas-charged shocks are a direct upgrade over stock twin-tube units and improve both handling and ride quality.

Are C10 performance suspension upgrades worth it?

For a driver-quality build where handling and ride quality matter, yes.  Your budget will really drive this decision.  Specifically, coilovers allow for ride height adjustment and significantly better damping than stock. Bolt-in kits designed for 1967-1972 trucks make installation straightforward without custom fabrication.  The rear suspension on these trucks stock really isn't too bad if your truck isn't pumping serious HP to the ground.

What's the best way to stop rear axle hop on a 1967-1972 C10?

Fresh polyurethane trailing arm bushings are the first fix — worn rubber in the two trailing arms is the primary cause of axle wrap. Traction bars add additional control for higher horsepower builds. Severe cases may benefit from a full coilover rear conversion.

Did all 1967-1972 C10 trucks have the same rear suspension?

Most 1967-1972 C10s came with two trailing arms and coil springs as standard. Leaf springs were available as an option on some configurations. Always confirm your specific rear setup before ordering springs or conversion components.

Are 1967 and 1972 C10 suspension parts interchangeable?

For the most part, yes — the 1967-1972 GM trucks share the same basic front and rear suspension architecture throughout the run minus rear end options or 4WD of course. Minor differences exist in some mounting points and hardware, so always verify fitment by exact year when ordering control arms, spindles, and coilover kits.
